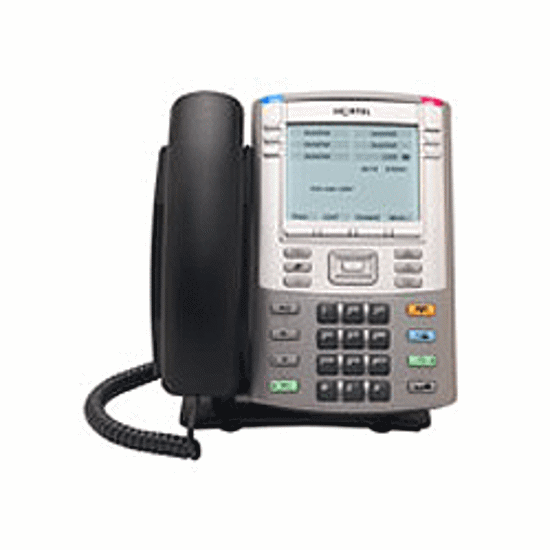

Picture of Nortel 1140E IP Phone (ICON) (NTYS05ACE6, NTYS17BAE6-XD78)

Nortel 1140E IP Phone (ICON) (NTYS05ACE6, NTYS17BAE6-XD78)

Telephone IP 1140E Nortel IP Phone 1140E delivers an innovative array of features including a high-resolution, fully-backlit, pixel-based graphical monochrome greyscale display, support for data and web-based applications as presented from external application servers, a four-way navigation cluster with new Enter/Send Key and, USB peripheral support for superior navigation experience. An integrated Bluetooth Audio gateway for greater freedom and mobility at the desktop, an integrated phone switch with Gigabit Ethernet LAN and PC ports, a local Tools Menu for simplified administration along with the suite of features delivered from Nortel Communication Servers.

Nortel 1140E IP Phone

  • Supports up to twelve programmable line/feature keys, fourteen fixed keys and four soft label keys
  • High resolution, graphical, fully-backlit, monochrome greyscale, pixed-based (240 x 160) Liquid Crystal Display
  • Five-position (-5 to 55 degrees) adjustable footstand
  • Four-way navigation cluster with new Enter/Send key
  • Universal Serial Bus for support of standard USB mice, keyboard and powered hubs
  • Data and web-centric applications text and graphical presentation support as delivered from external application servers
  • Integrated autosensing 10/100/1000 Base-T Ethernet switch with shared PC access (one LAN and one PC port)
  • Secure local Tools Menu for access to user preferences, configuration tools, diagnostics and network statistics
  • Voice Message/Incoming Call and Feature Status Indicator LEDs
  • IEEE 802.3af Power over Ethernet, pre-standard vendor power schemes and local AC power options
  • Supports Expansion Module, delivering an additional 18 programmable line/feature keys per module
  • Icon and English-text based keycaps
  • Field upgradeable firmware via Trivial File Transfer Protocol (TFTP) or UNIStim File Transfer Protocol (UFTP)
  • Desk or Wall Mountable

Nortel Compatibility

  • Nortel 1140e is compatable with BCM 50 R3.0 or later
  • Nortel Communication Server 1000 with backward compatibility to R4.0
  • Nortel Communication Server 2100 (initial support with Release SE10)
  • Nortel Communication Server 2000 (SN09U and later)
  • Supported on Media Gateway 1000B Expansion Chassis
  • Survivable Remote Gateway 50 (R3.0 and later)
  • Related products for Nortel 1140e: NTYS03BFE6, NTYS06BAE6, IP 1140E
$0.00 excl tax
:
